EcoSkiff 44HP Powered Eurorack Modular Case - Portable & Lightweight for Live Performances & Studio Production

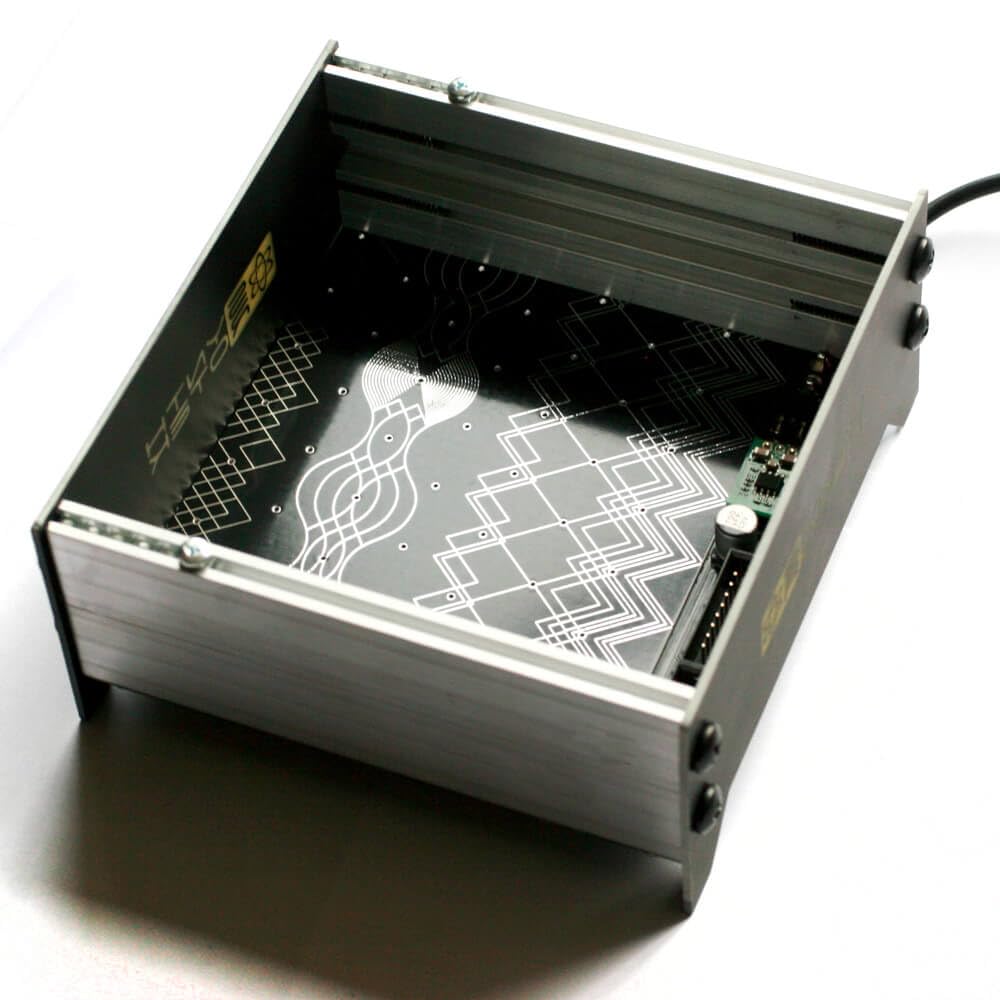

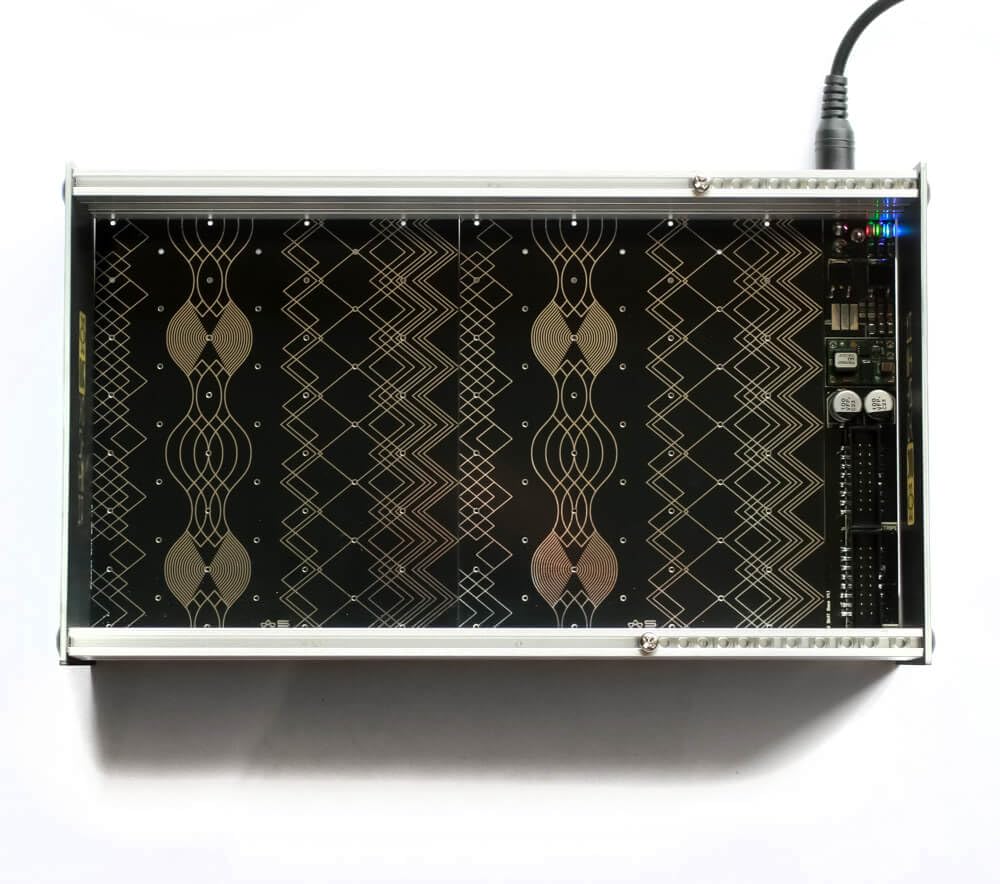

EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP. Save on money and space: get just as much HP as you need! Available in the following sizes: - 24HP - 44HP - 64HP - 84HP - 104HP Features and specifications: - The skiff goes together with just a Phillips head screwdriver! - Comes with 3mm slide nuts - Over-current protection: shuts off each power rail automatically if modules use too much current on that rail - Max module depth: 44mm - Max module depth above power supply: 33mm Specifications, 24HP-44HP: - Power output: +12V @ 1A -12V @300mA 5V@ 150mA - Power connectors: 2 (plus optional flying bus cable) Specifications, 64HP-104HP: - Power output: +12V @ 2A -12V @750mA 5V@ 1.5A - Power connectors: 15 - Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC Assembly required (but no soldering needed). For assembly instructions, please visit the Synthrotek website. Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
